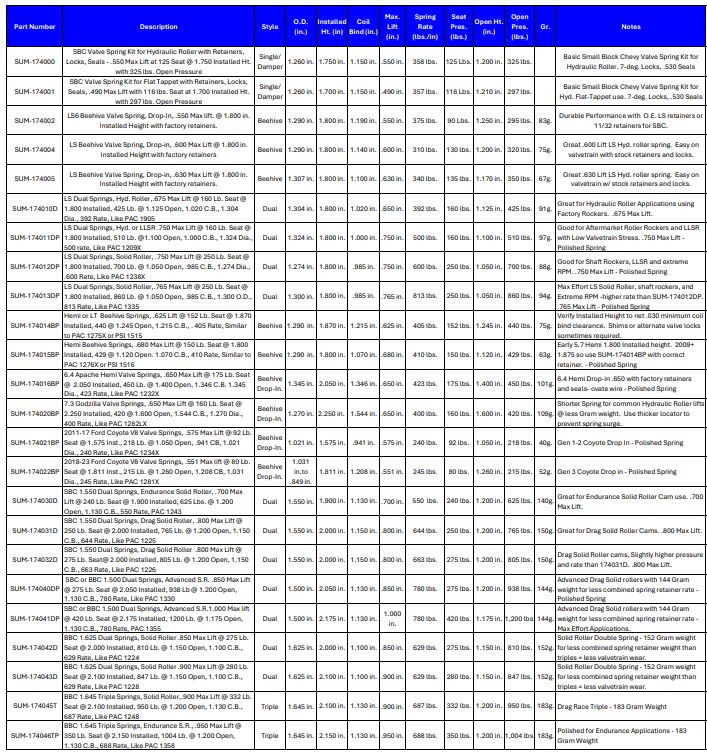

Charts & Guides for Part Number SUM-174001
Summit Racing™ Valve Spring and Retainer Kits
Valve Springs, Retainers, Single Springs, Steel Retainers, Locks, Single Groove, Seals, Chevy Small Block, Kit
See More Specifications
|
Check the Fit
Estimated Ship Date: Today Would you rather pick it up?
Overview
Brand:
Manufacturer's Part Number:
SUM-174001
Part Type:
Product Line:
Summit Racing Part Number:
SUM-174001
UPC:
190861017849
Valve Spring Style:
Standard
Number of Springs Per Valve:
Single
Maximum Valve Lift (in.):
0.490 in.
Retainers Included:
Yes
Retainer Material:
Steel
Outside Diameter of Outer Spring (in.):
1.260 in.
Coil Bind Height (in.):
1.150 in.
Damper Spring Included:
Yes
Spring Rate (lbs./in.):
357 lbs./in.
Inside Diameter of Outer Spring (in.):
0.875 in.
Locks Included:
Yes
Lock Material:
Steel
Lock Groove Quantity:
1-groove
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Valve Springs Coated:
No
Valve Stem Diameter (in.):
0.344 in.
Valve Stem Diameter (mm):
8.74mm
Remanufactured:
No
Quantity:
Sold as a kit.
Notes:
Spring kit is good up to 0.490 in. lift. Includes Viton valve stem seals.
Make:
CHEVROLET
Engine Family:
Chevy small block Gen I
Installed Height (in.):
1.700 in.
Seat Pressure at Installed Height (lbs.):
104-116 lbs.
Open Height (in.)(application):
1.210
Open Pressure (lbs.):
273-297 lbs.
Application Notes:
Spring kit is good up to 0.490 in. lift. Includes Viton valve stem seals.
Summit Racing™ Valve Spring and Retainer Kits
Installing a new camshaft is a sure way to improve horsepower—just remember that the rest of the valvetrain must be upgraded for proper operation. These Summit Racing™ valve spring and retainer kits include everything you need to keep your engine running in top shape after a cam swap. Each set features high-quality valve springs, steel retainers and locks, and Viton® seals. They're available in multiple size options.
