Holley Sniper 2 EFI 650 HP Base Fuel Injection Systems 550-511-3XX

4.75 out of 5 stars ( 16 )

Part Number: SNE-550-511-3XX

$1,258.95

$1,399.95

(Save $141.00)

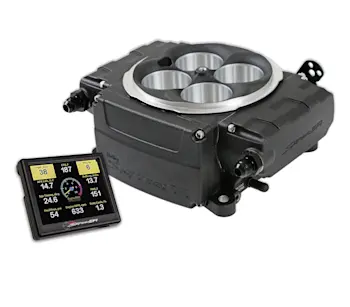

Fuel Injection System, Sniper 2, Self-Tuning, Throttle body, Black, 4150 Flange, 650 hp Max, 800 CFM, No Pump, 3.5 in. Display, Kit
See More Specifications

Holley Sniper 2 EFI 650 HP Base Fuel Injection Systems 550-511-3XX

Holley Sniper 2 EFI 650 HP Base Fuel Injection Systems 550-511-3XX

SNE-550-511-3XX

4.75 out of 5 stars ( 16 )

Part Number: SNE-550-511-3XX

Estimated Ship Date: Today

$1,258.95

$1,399.95

(Save $141.00)

Estimated Ship Date: Today Would you rather pick it up?

Overview

The #1 EFI Conversion Now More Affordable - Sniper 2 EFI Is Here!

  • Completely customizable

  • All-new design with 14 new features

  • New electronics – Only 4 wiring connections

  • Simple calibration wizard – NO laptop needed

  • Easy installation – Self Tuning

  • Supports up to 650HP NA or 575HP Boosted

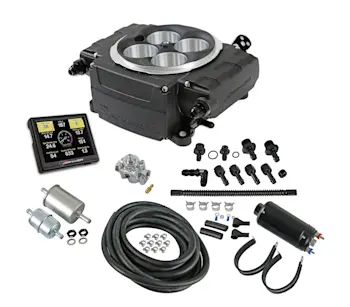

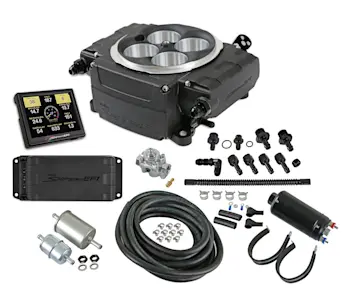

All Sniper 2 650 systems share the same next-generation throttle body, ECU, and performance capability. Kit selection does not change horsepower or drivability—it only changes how complete the fuel system and electrical management are.

Sniper 2 is a self-tuning EFI conversion for 4150-style carburetor applications, designed for easy at-home installation and modern OEM-style driving manners. Every system supports up to 650 HP naturally aspirated or 575 HP boosted, using four 100 lb/hr injectors and a genuine Bosch LSU 4.9 wideband oxygen sensor for continuous self-learning.

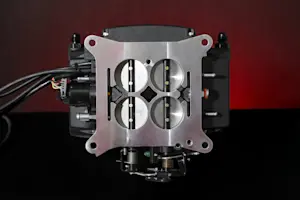

New features of the Sniper 2 deliver the next level of EFI refinement with a hidden rear-exit harness for a clean engine bay, redesigned throttle body and injector connectors for improved reliability, and a next-generation ECU with enhanced RF noise resistance built to handle classic vehicle wiring. Mil-spec M8 CAN bus connectivity, integrated transmission kickdown provisions, and smoother throttle shaft and plate geometry further elevate performance and drivability. With plug-and-play HyperSpark distributor support, multiple tuning and display options (handheld, digital dash, or Bluetooth), and full compatibility with the Sniper EFI Ecosystem, Sniper 2 sets the standard for modern bolt-on EFI systems.

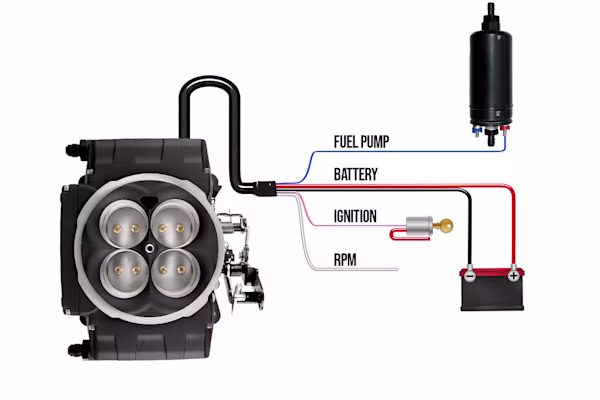

Simple Wiring

No complex EFI conversions here! Get your vehicle up and running in as little as four wires - battery, switched ignition, and RPM. Sniper is an ecosystem and is designed to support the needs of your build

Simple Setup

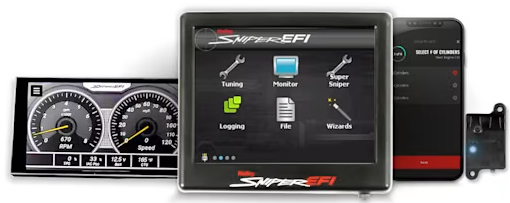

The only thing easier than the installation is the setup. Our intuitive wizard seamlessly walks you through the process. There's even multiple screen options - from the tried and true 3.5-inch handheld, 5-inch dash, through to our app enabled Bluetooth module. Tuning should always be this easy. Sniper 2 supports up to 650hp naturally aspirated and 575hp boosted with its onboard 2.5 BAR MAP sensor

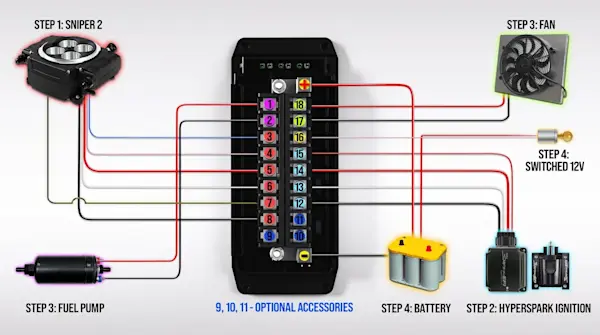

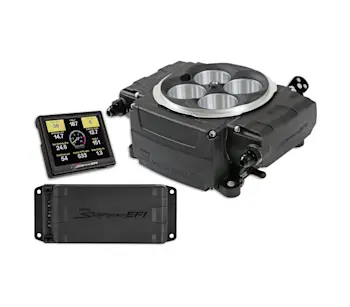

Optional Power Distribution Module

One of the most exciting products designed to support the Sniper 2 ecosystem is the Power Distribution module (PDM). This cost-effective and optional accessory isolates the core of your EFI and ignition wiring into one, easy to use location. Simply slide the stripped wire ends under the positive lock connector and tighten down the set screw. Battery and a switched 12 volt source is all that's required from your vehicle to power the PDM

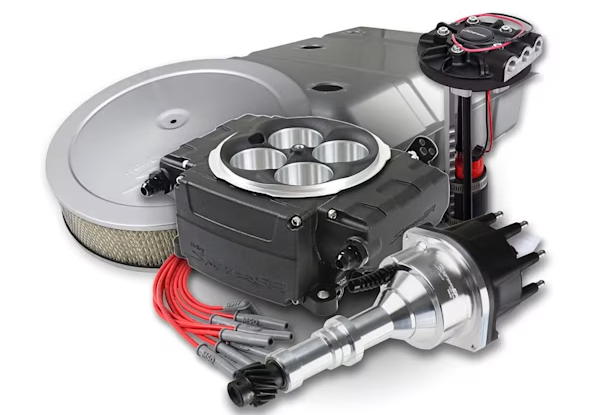

Sniper 2 Ecosystem Support

Summit Racing is here to help with your journey to EFI! From plug-and-play ignition system upgrades, air cleaners, spark plug wires, to universal and application-specific fuel systems, Summitracing.com has everything you need (and more)!

Specifications

Brand:
Manufacturer's Part Number:
550-511-3XX
Part Type:
Product Line:
Summit Racing Part Number:
SNE-550-511-3XX
UPC:
090127818947
Fuel Injection Style:
Throttle body
Fuel Injection System Type:
Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas:
650
Timing Control Compatible:
Yes
ECM Included:
Yes
Self Tuning:
Yes
User Tunable:
Yes
Fuel System Included:
None
Ignition System Included:
None
Power Distribution Included:
None
User Interface Included:
3.5 in. display
EGR:
No
Transmission Controller Included:
No
Metering Style:
Speed density
Multi-Port Fuel Rails Included:
No
Throttle Body Included:
Yes
Throttle Body Mounting Flange:
4-barrel square bore
Venturi Quantity:
4
Airflow Rate (cfm):
800 cfm
Throttle Body Material:
Cast aluminum
Throttle Body Color:
Black
Injectors Included:
Yes
Injector Size (lbs./hr.):
100 lbs./hr.
Calibration Module Included:
Yes
Wiring Harness Included:
Yes
Oxygen Sensor Included:
Yes
Fuel Pressure Regulator Included:
No
MAP Sensor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
IAC Motor Included:
Yes
Quantity:
Sold as a kit.
Notes:
Kit includes 3.5 in. display.
Special Attention:
Fuel pump and plumbing kit sold separately.
