Overview

Holley EFI 6.86 in. Pro Dash Touch Screens

Holley EFI 6.86 in. Pro Dash touch screens deliver over 200 monitoring channels of reliable real-time data in a more compact, full HD package suitable for nearly any motorsports application. Be assured that they will deliver the vitals you need! Pro Dash units are completely customizable for use in a variety of motorsports applications with a 6.86 in. 1280 x 480 resolution, low-glare, high-brightness, high-contrast, full-color capacitive touch screen that's easy to view--even in sun. They offer plug-and-play connection to most Holley EFI systems, as well as weather-resistant aluminum housings featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance with Pro Dash touch screens.

Features:

* Plug-and-play display support for Dominator, HP, Terminator X, and generation 1 Sniper EFI
* Integrated a 10 LED programmable shift light with 4 LED warning indicators for other sensor inputs.
* Capable of monitoring up to 238 real-time values such as rpm/TPS/boost
* 10 default background skins pre-loaded with unlimited options for importing custom layouts
* Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
* Virtual switch panel eliminates the need for external toggle switches
* Manual or auto-brightness features for easy viewing day or night
* Built-in GPS with odometer function (antenna included)
* On-screen datalog playback features allow you to review vital run information
* Expandable storage via USB
* No stylus required, capacitive touch, just like your smart phone
* User definable channel alarms and warnings

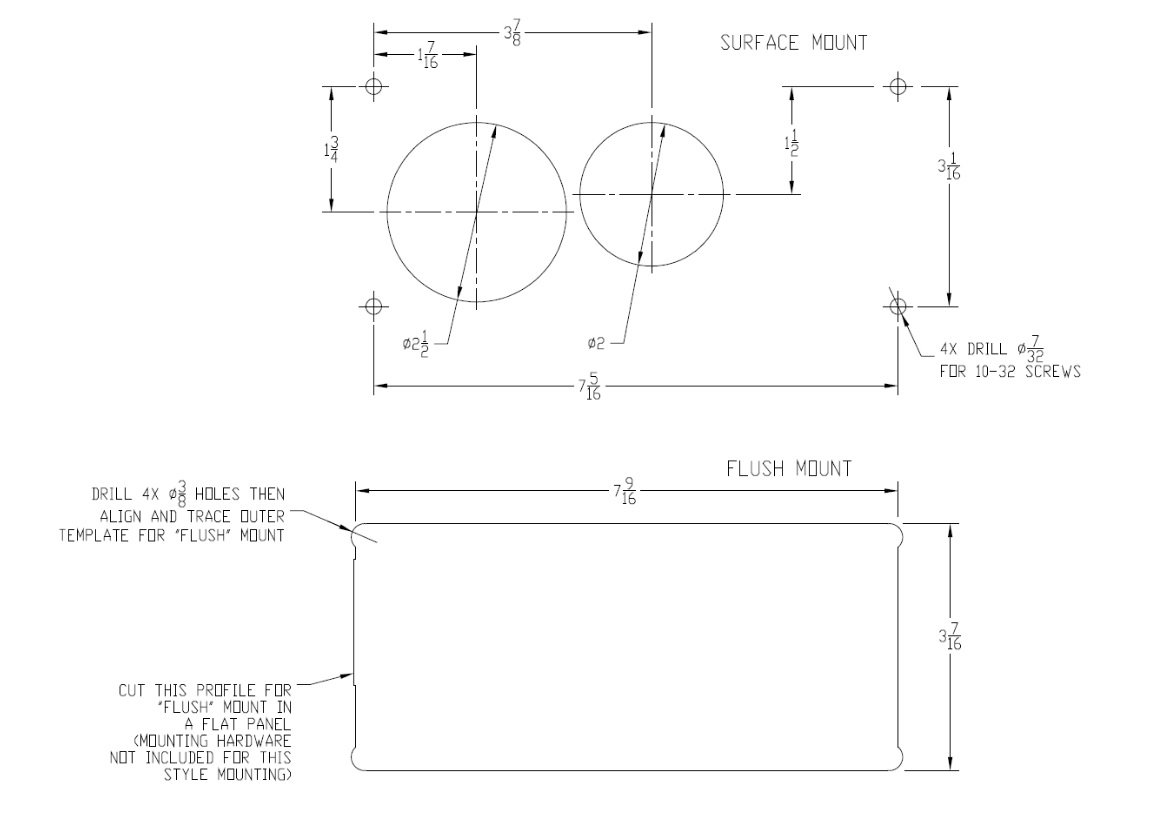

* Four 10-32 mounting holes for surface or flush mounting with high-quality hardware
* USB keyboard and mouse functionality makes it quick and easy to setup new layouts
* Includes 34-pin wiring harness contains power, ground, and CANbus connections
* Input and output functionality for 13 multi-configurable inputs, and four ground switched outputs
* User defined alarms for any input
* Upgradable with future software enhancements
* Viewing area is 6.86 in. on the diagonal
* Dash weight is 1.2 lbs.
* Real-time ECU tuning--HP/Dominator ECUs only
